Washington Metro
Rapid Transit

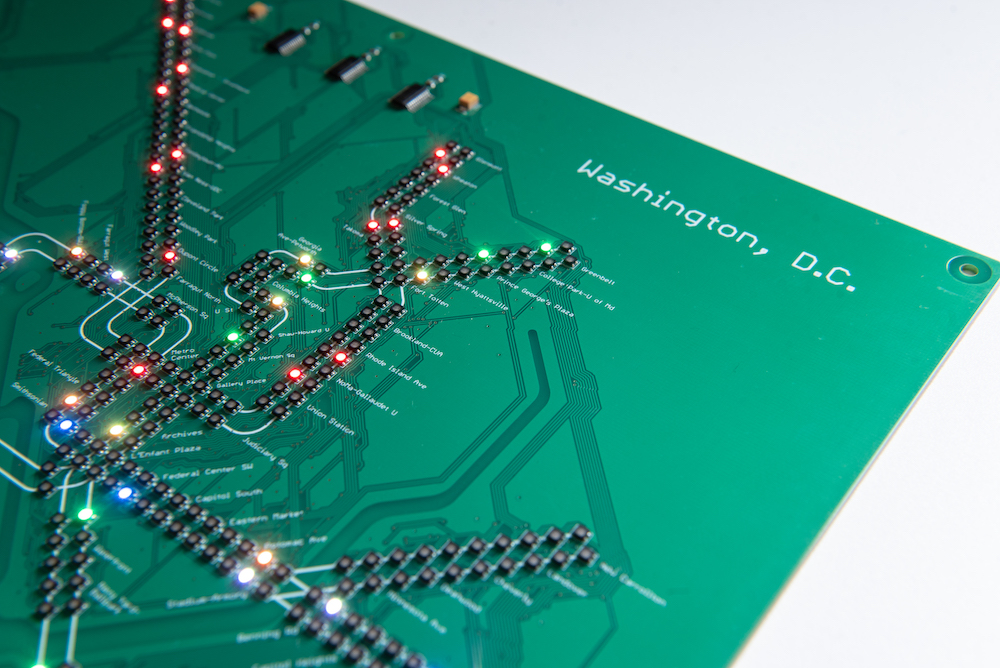

This beautiful PCB displays the live bi-directional movement of trains throughout all stations on the Washington Metro (including the Silver Line extension).
It includes a representation of the Potomac River using a contrasting copper pour beneath the green solder resist of the board.
Ships from the US
Ships to the US
and Canada
Switch to UK
Includes Standard
1 Year Warranty
Designed in
London UK, and
Somerville USA
Specifications
Connectivity
- WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
- Data: Connects to our server every minute
- Or connect to your own data sources
- LED Count: 400
- LED Type: 2020 Surface Mount
- LED Size: 2.0mm x 2.0mm
- LED Colour: RGB (Red, Green, Blue)
- Brightness control: 16 Level
- 1000mA @ 5V
- Included: 1.8M USB Cable
- Material: 1.6mm FR-4
- Size: 300mm x 240mm (11.8in x 9.4in)
- Colour: Green
- Microcontroller: ESP32
- LED Driver: ICN2038/ICN2012
- Material: 6mm MDF
- Laser cut ready to assemble
What's in the Box?
Package Contains
- Live Tracker
- Wooden Stand
- USB Cable
- Setup Instructions
Note: You will need to plug this into a USB phone charger or computer USB port for power.
Shipping and Warranty
Shipping
- Ships to the US and Canada
- Tracking code supplied once dispatched
- Standard 1 Year
Maker Friendly
Firmware
- Flash the chip via FTDI Pins
- Program using Arduino IDE or similar
- Reprogrammable!
Hats off to @TrackrTrain these PCBs of rail networks that use live open data to show real-time movements are awesome.
