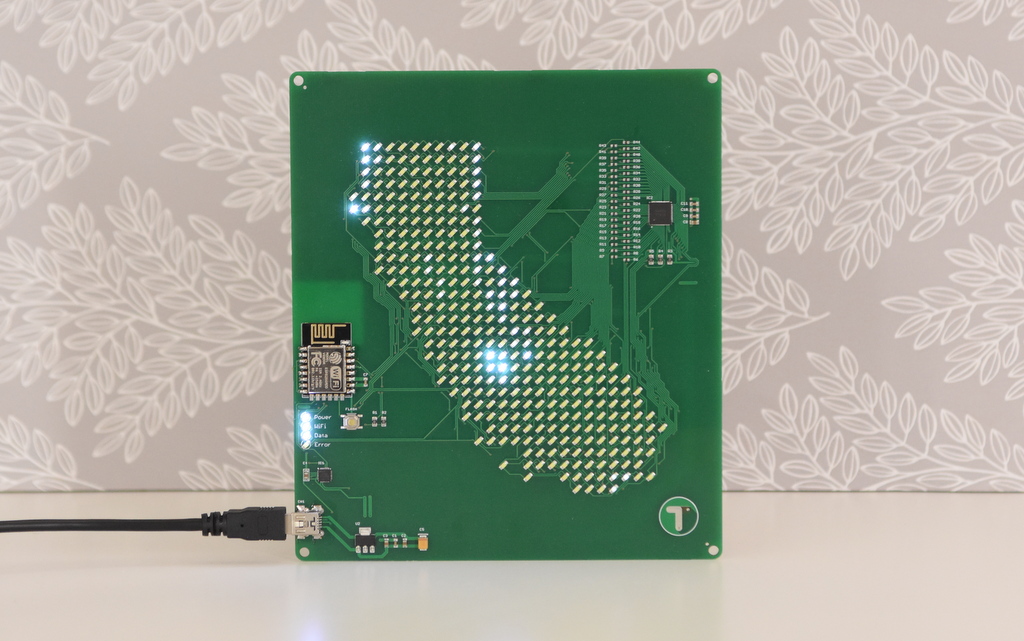

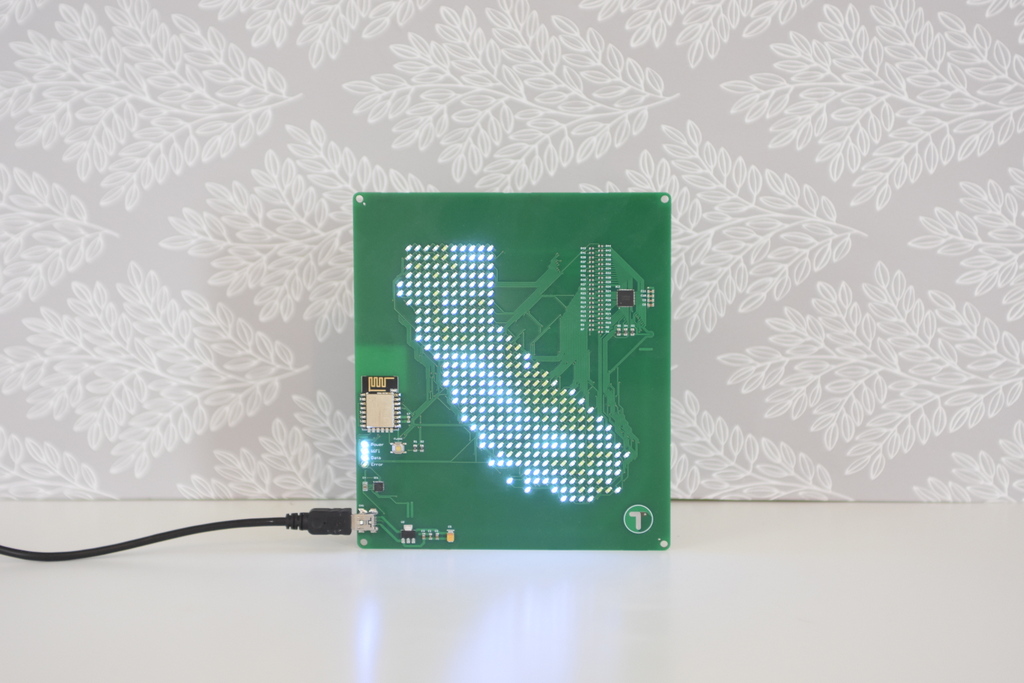

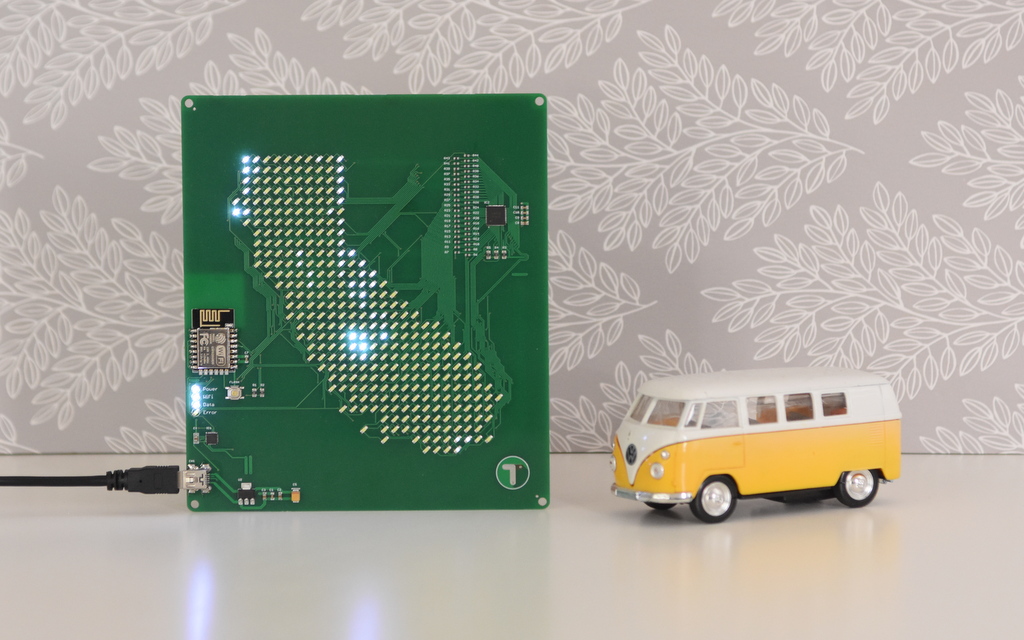

California Map Trackr
Geographic Map
Shows rain or wind in California, with more data layers coming soon. We process precipitation (rain and snow) radar information and online wind speed data, letting you select the layer you want to display.
Shows static or animated data, letting you see the rain/wind conditions building up to where they are now.
Coming Soon: Provide your own data. Send us your geographic data through our API, which we send to your board.
Ships from the US
Ships to the US
and Canada
Switch to UK
Includes Standard
1 Year Warranty
Designed in
London UK, and
Somerville USA
Specifications
Connectivity
- WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
- Data: Connects to our server every minute
- Or connect to your own data sources

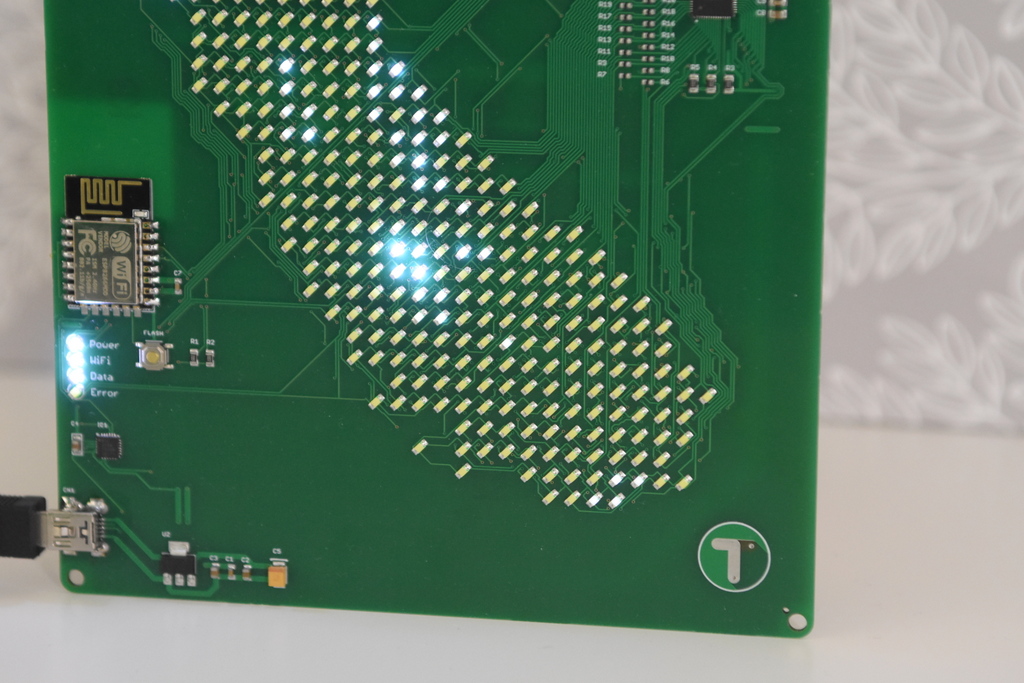

- LED Count: 341
- LED Type: 0805 Surface Mount
- LED Size: 2.0mm x 1.25mm
- LED Colour: White
- Brightness control: 16 Level
- 500mA @ 5V
- Included: 1.8M USB Cable
- Material: 1.6mm FR-4
- Size: 140mm x 160mm (5.5in x 6.3in)
- Colour: Green
- Microcontroller: ESP8266 (ESP-12E)
- LED Driver: IS31FL3741A
- Material: 6mm MDF
- Laser cut ready to assemble
What's in the Box?
Package Contains
- Live Tracker
- Wooden Stand
- USB Cable
- Setup Instructions
Note: You will need to plug this into a USB phone charger or computer USB port for power.
Shipping and Warranty
Shipping
- Ships to the US and Canada
- Tracking code supplied once dispatched
- Standard 1 Year
Maker Friendly
Firmware
- Flash the chip via FTDI Pins
- Program using Arduino IDE or similar
- Reprogrammable!
