London Underground Large
Rapid Transit
**** Updated for 2023 **** We've added the Elizabeth Line and Northern Line Extension

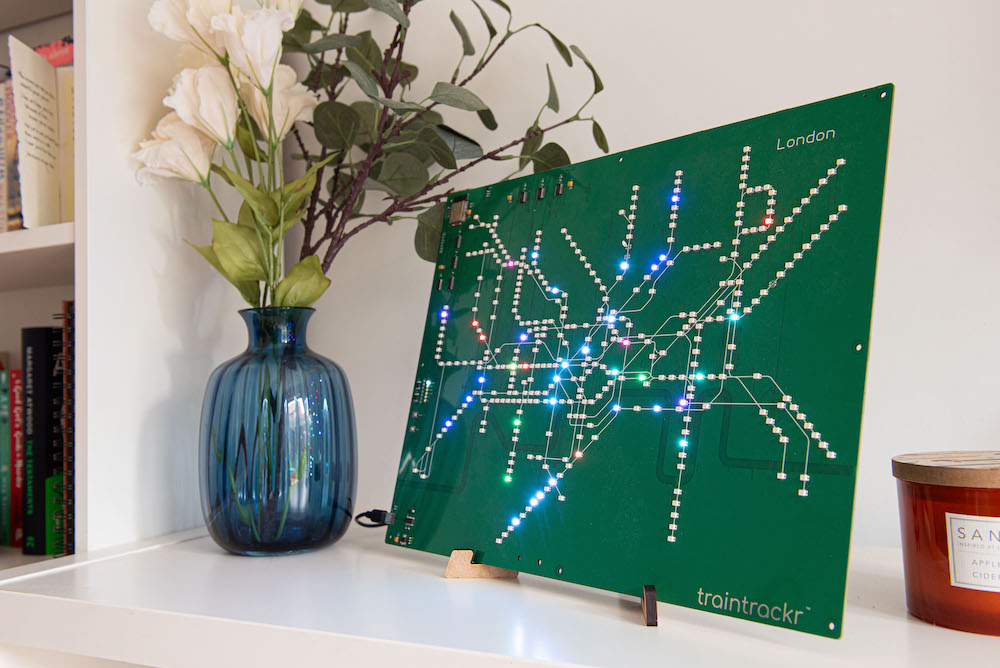

Tracks trains on the London Underground, showing trains arriving in stations live, as each vehicle moves around the network.
Board shows all 13 main underground lines: Bakerloo, Central, Circle, District, DLR, Hammersmith & City, Jubilee, Metropolitan, Northern, Piccadilly, Victoria, Elizabeth Line, Waterloo & City
$315
Ships from the US
Ships to the US
and Canada
Switch to UK
Includes Standard
1 Year Warranty
Designed in
London UK, and
Somerville USA
Specifications
Connectivity
- WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
- Data: Connects to our server every minute
- Or connect to your own data sources
- LED Count: 373
- LED Type: 3528 Surface Mount
- LED Size: 3.5mm x 2.8mm
- LED Colour: RGB (Red, Green, Blue)
- Brightness control: 16 Level
- 500mA @ 5V
- Included: Power supply and Cable
- Material: 1.6mm FR-4

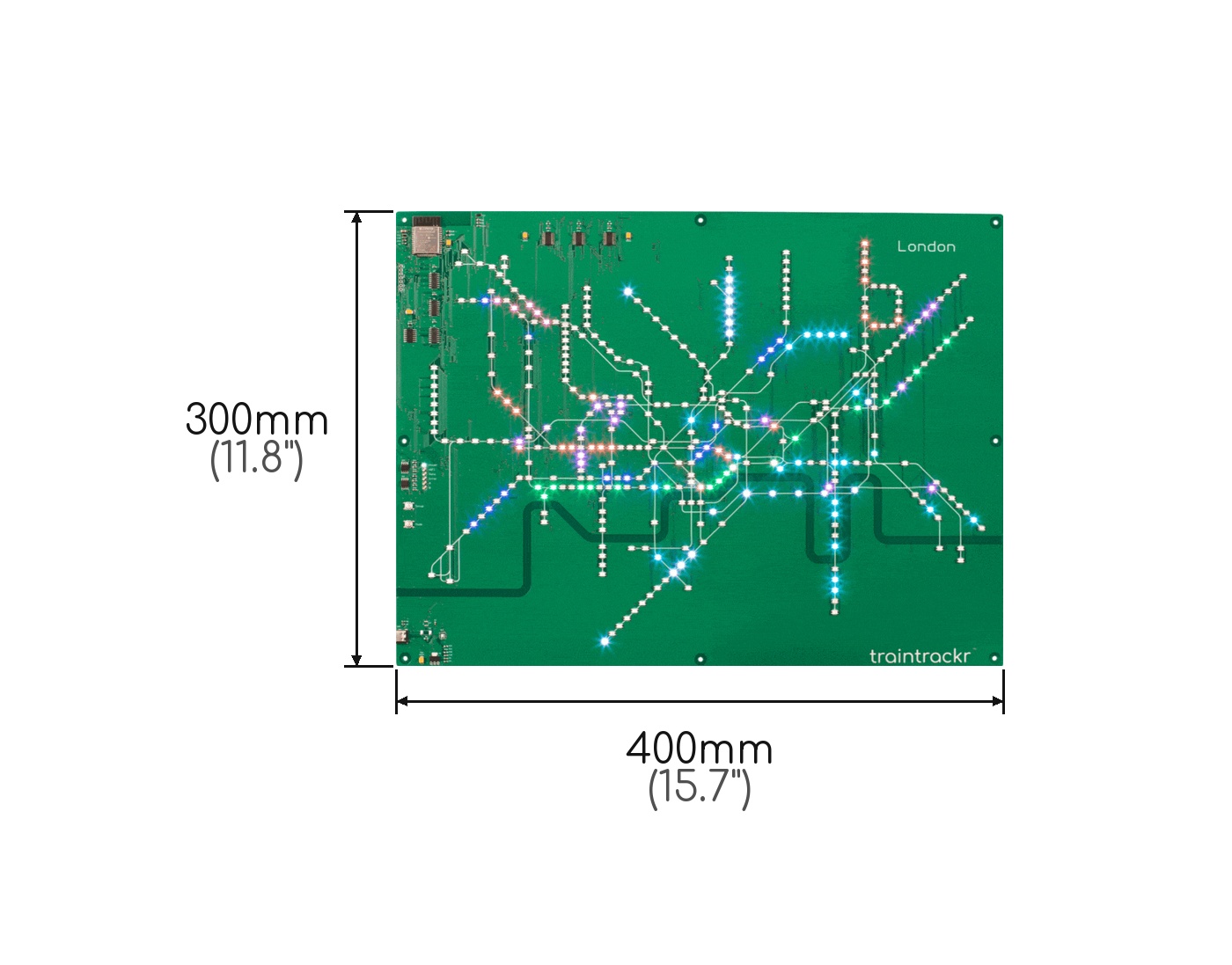

- Size: 400mm x 300mm (15.7in x 11.8in)
- Colour: Green
- Microcontroller: ESP32
- LED Driver: ICN2038/ICN2012
- Material: 6mm MDF
- Laser cut ready to assemble
What's in the Box?
Package Contains
- Live Tracker
- Wooden Stand
- Power Supply and Cable
- Setup Instructions
Shipping and Warranty
Shipping
- Ships to the US and Canada
- Tracking code supplied once dispatched
- Standard 1 Year
Maker Friendly
Firmware
- Flash the chip via FTDI Pins
- Program using Arduino IDE or similar
- Reprogrammable!
I absolutely love this, it's just beautiful.
