Chicago 'L'
Rapid Transit
This beautiful PCB displays the live bi-directional movement of trains throughout all stations on the Chicago 'L'.
It includes a representation of Lake Michigan and the Chicago River using a contrasting copper pour beneath the green solder resist of the board.
Receives live data over WiFi
LEDs update every second
Uses 574 RGB (Red, Green, Blue) LEDs
$279
$251.10
When Using Coupon Code SALE24
In Stock
Ships from the US
Ships to the US
and Canada
Switch to UK
Includes Standard
1 Year Warranty
Designed in
London UK, and
Somerville USA
Looking for shipping to the UK and Europe? Try our UK Site
Specifications
Connectivity
- WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
- Data: Connects to our server every minute
- Or connect to your own data sources
- LED Count: 574
- LED Type: 2020 Surface Mount
- LED Size: 2.0mm x 2.0mm
- LED Colour: RGB (Red, Green, Blue)
- Brightness control: 16 Level
- 500mA @ 5V
- Included: Power supply and Cable
- Material: 1.6mm FR-4

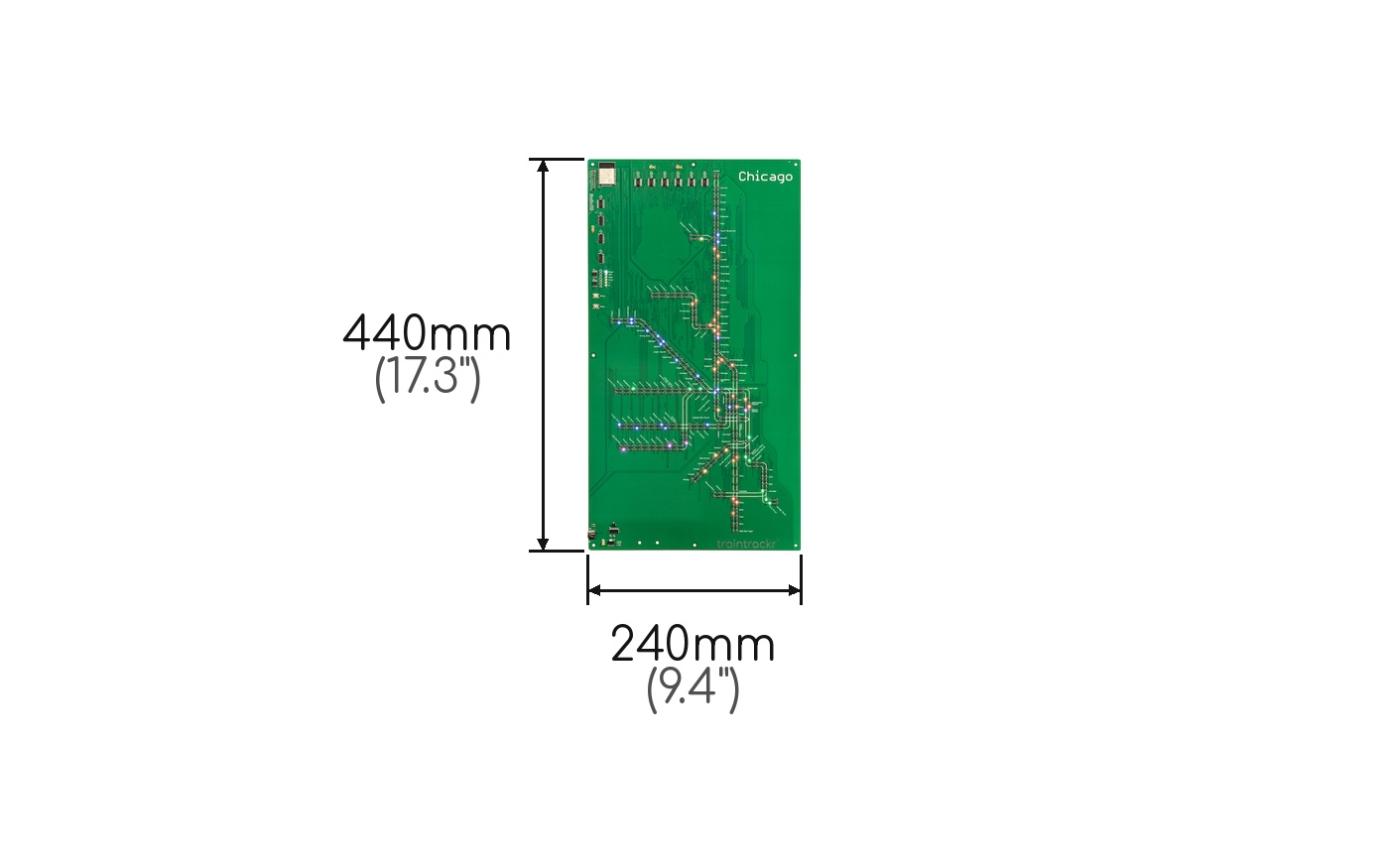

- Size: 240mm x 440mm (9.4in x 17.3in)
- Colour: Green
- Microcontroller: ESP32
- LED Driver: ICN2038/ICN2012
- Material: 6mm MDF
- Laser cut ready to assemble
What's in the Box?
Package Contains
- Live Tracker
- Wooden Stand
- Power Supply and Cable
- Setup Instructions
Shipping and Warranty
Shipping
- Ships to the US and Canada
- Tracking code supplied once dispatched
- Standard 1 Year
Maker Friendly
Firmware
- Flash the chip via FTDI Pins
- Program using Arduino IDE or similar
- Reprogrammable!
To get your board up and running you will need access to a 2.4Ghz WiFi network. You can find more details on our FAQ Page.
